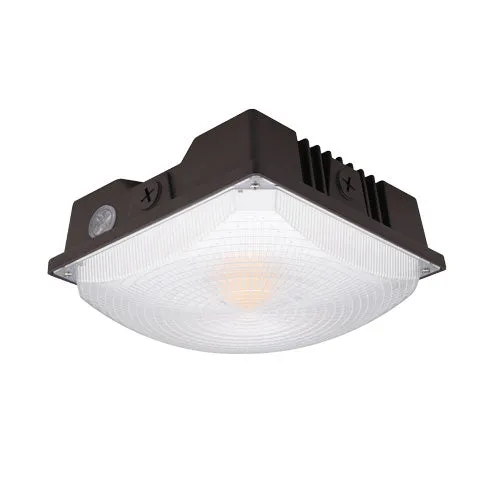

- ▪ Field selectable 3000k (warm white), 4000k (neutral white), & 5000k (cool white) color temperatures.*
- ▪ Long-life LEDs provide 169,000 hours of operation with at least 70%of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).**
- ▪ LED chromaticity based on < 7-step ANSI quadrangles.
- ▪ LED color maintenance < 0.001 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- ▪ FP-5L = 5,000 nominal lumens.*
- ▪ FP-10L = 10,000 nominal lumens.*
- ▪ Universal 120-277V (50/60Hz) AC voltage.
- ▪ 0-10vdc dimming drivers, which provide continuous dimming to 10%of maximum lumen output, are standard.
- ▪ Mounting options include surface-mounting and pendant-mounting using ¾” electrical conduit.
- ▪ Optional, integral occupancy/daylight sensor is installed inside the luminaire housing and provides both on/off and dimming functions.
- ▪ Power factor > 0.90.
- ▪ Total harmonic distortion < 20%.
- ▪ Color rendering index (Ra) > 80. Red color rendering > -5.
- ▪ Die cast aluminum housing with dark bronze powder coat finish.
- ▪ Polycarbonate lens.
- ▪ Easy installation in new construction or retrofit.
- ▪ cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
- ▪ IP65 rated for ingress protection.
- ▪ Lens is IK10 rated for impact.
- ▪ DLC premium approved (primary use categories: Fuel Pump Canopy Luminaires).
- ▪ Complies with FCC Part 15, class A.
- ▪ Standard models comply with IEC/EN 61000-4-5, surge immunity protection, 2kV. Optional 10kV surge protector available (see below for ordering information).
- ▪ 5-year warranty on all electronics and housing.
